40mm Flex Spout Adapter with Pipe Thread, Viton

40mm Flex Spout Adapter with Pipe Thread, Viton

SKU: GT22620140TE
Original GT SKU: 226-201-40mm-T
$122.00 - $122.00
$122.00
$122.00 - $122.00
$122.00

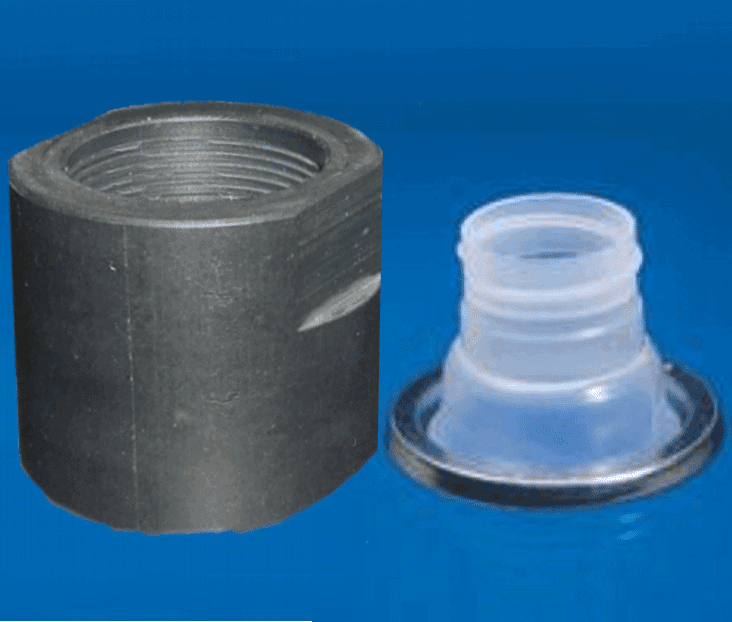

The 40mm Flex Spout Adapter with Pipe Thread Top (Part Number: 226-201-40mm-T) is designed to facilitate the use of GoatThroat pumps with containers featuring a Rieke® FlexSpout® closure. This adapter allows for secure attachment to containers with a nominal 40 mm opening (actual size 39.51 mm threads) and includes a 2-inch pipe thread connection on the top side. This adapter allows for a secure, threaded attachment working with other threaded adapters such as the 12-inch standoff or the teflon-kalrez pump, eliminating the need to tip the container and thereby reducing the risk of spills. For use with GoatThroat EPDM and Santoprene Pumps.

  • INCLUDES: Adapter and EPDM O-ring

Note: Variations in temperature, concentrations, etc., may affect chemical resistance, and so it is up to the customer to truly decide whether the components will handle what they are passing through the pumps.

Description

The GT-226-201-40mm-T adapter for CAPS with 40mm opening nominal allows the pumps to be used on containers which feature a Rieke® FlexSpout® (actual size 39.51 mm threads) and which required a 2-inch pipe thread connection on the top side.

This is the ideal choice if you wish to use the 12"Standoff or for those applications which require a non-standard teflon-kalrez pump which has a threaded fitting (Teflon-Kalrez Pumps)

See how to choose. This eliminates tipping of the container and associated spill hazards. See how it works. Please specify chemical or GT Pump to get the correct gasket.

Made in USA.

2017 Gold Winner – Product of the Year in Fluid Handling.  Need to find a pump to work with your DrumQuik® applications   or are you looking for a threaded fitting between the pump and the drum? Check out the DQGT – compatible with DrumQuik– co-developed with CPC – Colder Products Inc. Designed as an engineering control to improve worker safety, sustainability and environmental compliance for point-of-use liquid transfer, the GoatThroat DQGT Pump System works with all DrumQuik inserts. Pumps from GoatThroat prevent the hazards usually associated with transferring liquids such as unwanted vapors, leaks and spills.

The DrumQuik for GoatThroat (DQGT) sealed chemical dispense/pumping system is designed to minimize/eliminate corrosive chemical exposure to technicians, prevent hazardous spills into the environment, minimize inventory loss due to evaporation, and protect the purity of the chemical while dispensing liquids at point of use and when transferring the system from barrel to barrel. With a DrumQuik dip-tube closure installed in the container, only the 2-lb DQGT pump head is moved to the next barrel. Featuring secure, threaded closure options for most common plastic and metals drums, the DQGT installs easily on barrels providing a sealed system that maintains liquid purity and prevents noxious vapors from escaping into the environment.

The DQGT Pump System is available as standard in either Viton® or EPDM or with an FEP upgrade to match the chemical resistance required for use with over 1,400 commonly used liquids and chemicals. To find out more,  call GoatThroat toll free +1 866-639-4628 or +1 646-486-3636.

See a video of how easy it is to use.

Barrel & Pail Adapters

Because chemicals arrive at your facility in so many different sized containers:  barrels, pails, jerri cans  in 1 gallon up to 5 gallon containers,IBC totes,  GoatThroat Pumps has one of the largest offerings of adapter in the world. And if we don’t have it yet, we will make it for you

IMPORTANT DOCUMENTS

Click here to see how to measure for your adapter Click here for the jerri-can/jug selection guide Click here for the flex spout selection guide Click here for the barrel buttress adapters selection guide Click here for the installations guides for all of our adapters Click here to order your adapter

Feature Benefits

  • Secure Connection: Enables GoatThroat pumps to attach firmly to containers with Rieke® FlexSpout® closures, ensuring a stable and leak-free transfer of liquids.
  • Threaded Top: Features a 2-inch pipe thread on the top side, making it ideal for applications requiring a non-standard, Teflon-Kalrez pump with a threaded fitting.
  • Compatibility with Accessories: Suitable for use with the 12-inch standoff accessory, allowing the use of the drum's top as a shelf.
  • Spill Prevention: By allowing upright dispensing, this adapter minimizes the hazards associated with tipping containers during liquid transfer.
  • Chemical Compatibility: To ensure optimal performance and chemical resistance, it is important to specify the type of chemical or the GoatThroat pump model when ordering. This information helps in selecting the appropriate gasket material for the adapter.
